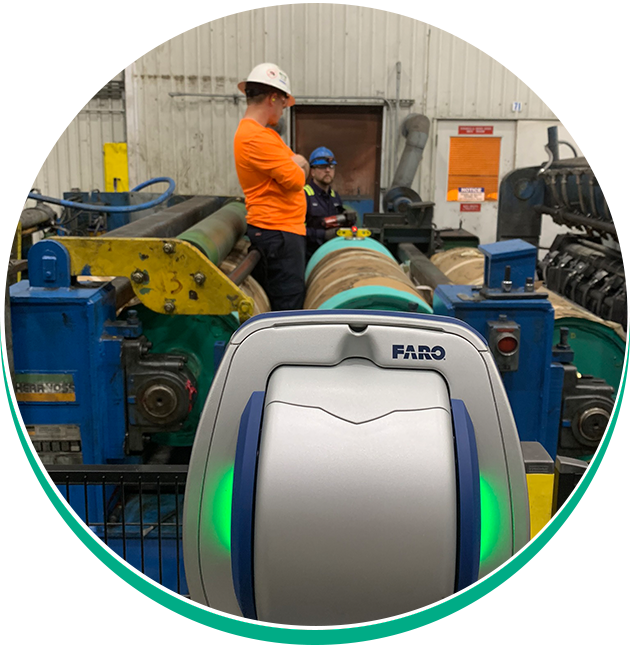

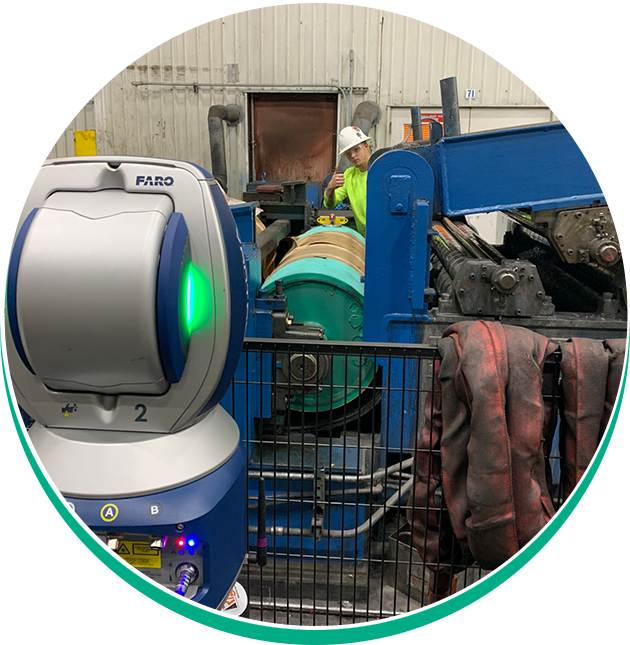

At 3D Industrial Services, our roll alignment services utilize cutting-edge laser gyroscopes and laser trackers to ensure precise alignment of rolls in various industries, including printing presses, steel industries, and gravure presses.
Misaligned rolls cause uneven bearing stresses, web breaks, uneven coating, and tension irregularities, leading to excess machine wear and costly downtime. Our total alignment solution combining the ParAlign with laser trackers delivers accurate results and instant visual reports, enabling necessary corrections in the shortest time possible—while producing accurate and reproducible results.
Contact Us
Why Roll Alignment is Critical
The parallelism of rolls is crucial to maintaining product quality and increasing productivity through higher machine availability. As machines run at high speeds, the importance of properly aligned rolls and their surrounding structures grows even more. Our roll alignment system helps companies convert their operations into high-efficiency environments by ensuring rolls remain level and square.
Reduce Downtime – Proper roller alignment minimizes wear and tear, delamination, and production problems.
Enhance Product Quality – Well-aligned rolls improve productivity, eliminate tension irregularities, and prevent uneven coating.
Improve Machine Longevity – Our alignment service prevents premature roller surface wear, reducing costly repairs.
Minimizing Downtime and Production Losses
Misaligned rolls can lead to severe production disruptions, causing costly downtime and defective products. Our roll alignment system minimizes these risks with precision measurements and quick alignment corrections.
Reduce Production Problems: Properly align rolls to prevent defects like uneven coating and delamination.
Shorter Measurement Time: The ParAlign roll alignment services allow us to perform a measurement in about 30 seconds per roll.
Eliminate Excess Wear and Tear: Well-aligned rolls extend roller surface wear and minimize wear and tear.
Improving Machine Performance and Lifespan
Keeping your rolls and their surrounding structures aligned improves overall machine availability and extends the lifespan of critical equipment.
Increase Productivity: Our alignment solutions ensure higher machine availability and consistent operation.
Ensure Structural Integrity: Properly aligned tower rolls and base-shifted systems maintain structural durability.
Maintain Tolerances in High-Speed Operations: The parallelism of rolls becomes even more important when machines are running at high speeds.
Precision Alignment with Advanced Technology
Our alignment solution combining the ParAlign and laser trackers ensures precise roll and geometrical alignment, even in difficult-to-access areas.
No Reference Roll Required: The ParAlign does not require a reference roll, making it easier to align complex systems.
Three-Dimensional Measurements: We take measurements in three-dimensional space, ensuring reproducible results.
Instant Alignment Data: Our system delivers a full report with graphical and visual reports for quick analysis.
Why Choose 3D Industrial Services?
Innovators of Inertial Alignment: We specialize in ParAlign roll alignment services, a cutting-edge non-optical measurement method.
Total Alignment Solution: Our alignment solution combining the ParAlign with laser trackers ensures full roll and geometrical alignment.
Fast and Accurate Results: The measurement takes about 30 seconds per roll, minimizing downtime.
Industry Expertise: We serve printing presses, steel industries, gravure presses, aerospace, and more.
Our Detailed Measurement Method Process
Ensuring precise roll alignment requires a systematic approach using advanced laser gyroscopes, inertial measurement methods, and laser trackers. Our ParAlign roll alignment services offer reproducible results by quickly identifying misalignment and allowing for necessary corrections, ensuring higher machine availability and product quality.
Initial Assessment & Planning
Our team evaluates your roll alignment system to determine the best approach for measurement and correction.

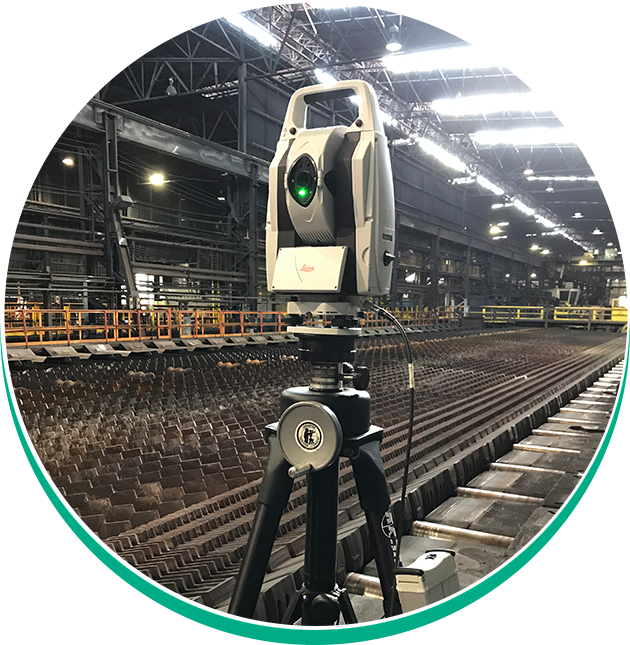

Precision Measurement with ParAlign and Laser Trackers
We use ring laser gyroscopes and laser trackers to take measurements in three-dimensional space, ensuring level and square positioning.
Data Analysis & Corrections
Our system provides alignment data, including yaw, roll deviations, and structural shifts, allowing necessary corrections in real-time.
Final Validation & Reporting
We deliver a full report with graphical alignment verification, ensuring that all adjustments meet your baseline if required.
Who This Service Is For
Our roll alignment services cater to a variety of industries where precision, efficiency, and minimal downtime are critical. Whether you're in printing, steel manufacturing, aerospace, or industrial production, we ensure that your machinery operates at peak performance with well-aligned rolls that enhance productivity and machine availability.

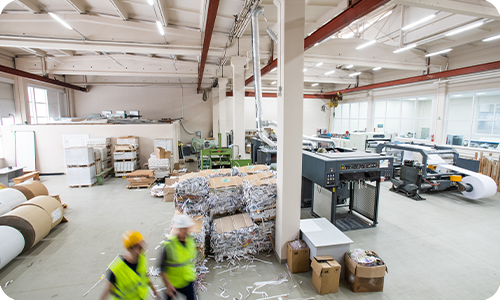

Printing & Web Handling Industries
Proper roller alignment prevents web breaks, ensuring smooth operations in printing presses and gravure presses.
Steel & Manufacturing Industries
We help align rolls in steel industries, reducing uneven bearing stresses and improving production efficiency.
Aerospace & Navigation Sectors
Our alignment service enhances position in space accuracy for spacecraft, navigation, and high-speed U.S. aerospace projects.

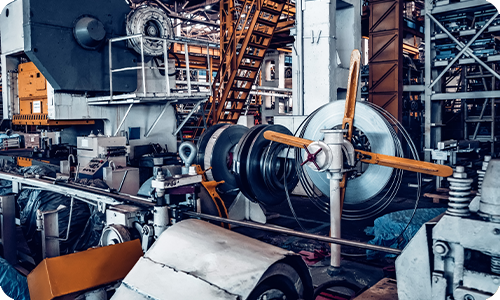

Industrial Machinery & Converting Equipment
Proper roller alignment ensures longevity and performance in industrial production lines and conveyor systems.
The Importance of Hiring the Right Professional
Choosing the right roll alignment services provider is critical to maintaining operational efficiency, reducing downtime, and preventing costly wear and tear. At 3D Industrial Services, we are experts in alignment service solutions, utilizing the latest ring laser gyroscopes, laser trackers, and ParAlign roll alignment services to ensure reproducible results.
Unlike traditional methods, our non-optical measurement method allows us to take measurements in three-dimensional space without requiring a reference roll. This technology is crucial for aligning rolls and their surrounding structures, ensuring optimal machine efficiency. Our solutions also provide a full report with accurate results and instant visual reports, allowing for necessary corrections in the shortest time possible—while producing accurate alignment adjustments.
With a strong track record in serving industries such as printing presses, steel industries, and aerospace, we deliver results that increase productivity through higher machine availability. Whether you need to align rolls in high-speed systems or optimize roller alignment, we have the expertise to meet your needs.
Frequently Asked Questions
The ParAlign roll alignment system uses ring laser gyroscopes instead of optical references, allowing it to measure misalignment in difficult-to-access areas and provide instant alignment data.
Optimize Performance
Get the Most Precise Roll Alignment Available
Ensure your machinery operates at peak performance with our ParAlign roll alignment services. Whether you need roller alignment for printing presses, steel industries, or industrial machinery, we provide reliable and efficientalignment solutions. Contact us today for a consultation and keep your machines running with optimal efficiency!
Schedule Your Alignment
